Magewell Pro Convert AES67

An IP audio converter and capture device for multiple formats.

• Provides a seamless bridge between analog audio, software and IP standards such as AES67, NDI®, SRT and others
• Provides a flexible, virtual audio matrix that allows routing or mixing of any analog or IP-based input channel to any output
• Enables local and remote production workflows and mixed-technology ProAV installations

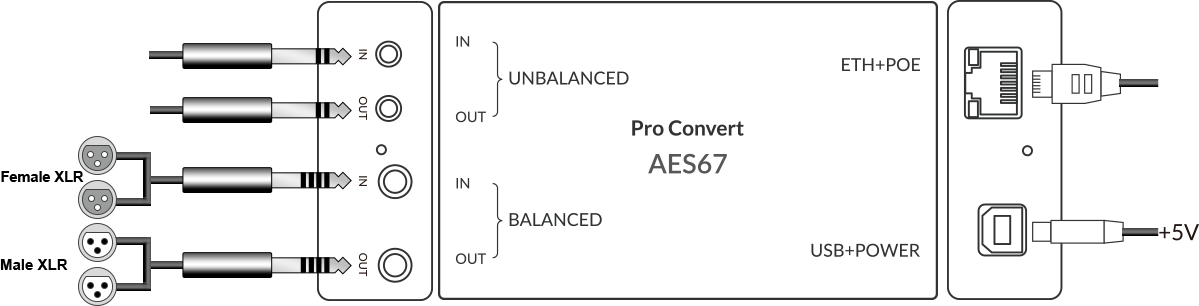

Interface

Technical specifications

Input/reception functions:

• Reception of up to 46 audio channels
• 1 x 2-channel 3.5 mm unbalanced input
• 1 x 2-channel 4.4 mm balanced input
• 1 x 4-channel 24-bit/48k UAC input
• Reception of 4 x 8-channel 24-bit AES67 streams, both multicasted and unicasted
• Optionally, reception of 1 x 4-channel 24-bit SRT stream or 1 x 4-channel 24-bit NDI® stream or 1 x 4-channel 24-bit Icecast stream is possible

Output/send functions:

• 1 x 2-channel 3.5 mm unbalanced output
• 1 x 2-channel 4.4 mm balanced output
• 1 x 4-channel 24-bit/48k UAC output
• Multicast and unicast up to 8 x 8-channel 24-bit AES67 streams
• Encoding of 1 x 4-channel 24-bit audio for Icecast/SRT/NDI® streams simultaneously

Audio routing and mixing functions:

• Any analog or IP-based input channel can be routed and mixed to any analog, IP or UAC output via a web-based user interface

Other:

• Plug-and-play as a UAC device
• Provision of comprehensive information about the device and signals in real time
• Remote control via Web GUI and Magewell Cloud
• Supports USB RNDIS/ECM
• Provision of HTTP APIs
